| Cat. No. | M (BSPT) | L (mm) | SW | Colour | |
|---|---|---|---|---|---|
| 12052202021 | 1/8" | 23.2 | 11 | White | SEE PRODUCT |
| 12052204041 | 1/4" | 27.1 | 14 | White | SEE PRODUCT |
| 12052206061 | 3/8" | 28.2 | 17 | White | SEE PRODUCT |
| 12052208081 | 1/2" | 34.1 | 22 | White | SEE PRODUCT |
| 12012202028 | 1/8" | 23.2 | 11 | Blue | SEE PRODUCT |
| 12012204048 | 1/4" | 27.1 | 14 | Blue | SEE PRODUCT |
| 12012206068 | 3/8" | 28.2 | 17 | Blue | SEE PRODUCT |
| 12012208088 | 1/2" | 34.1 | 22 | Blue | SEE PRODUCT |

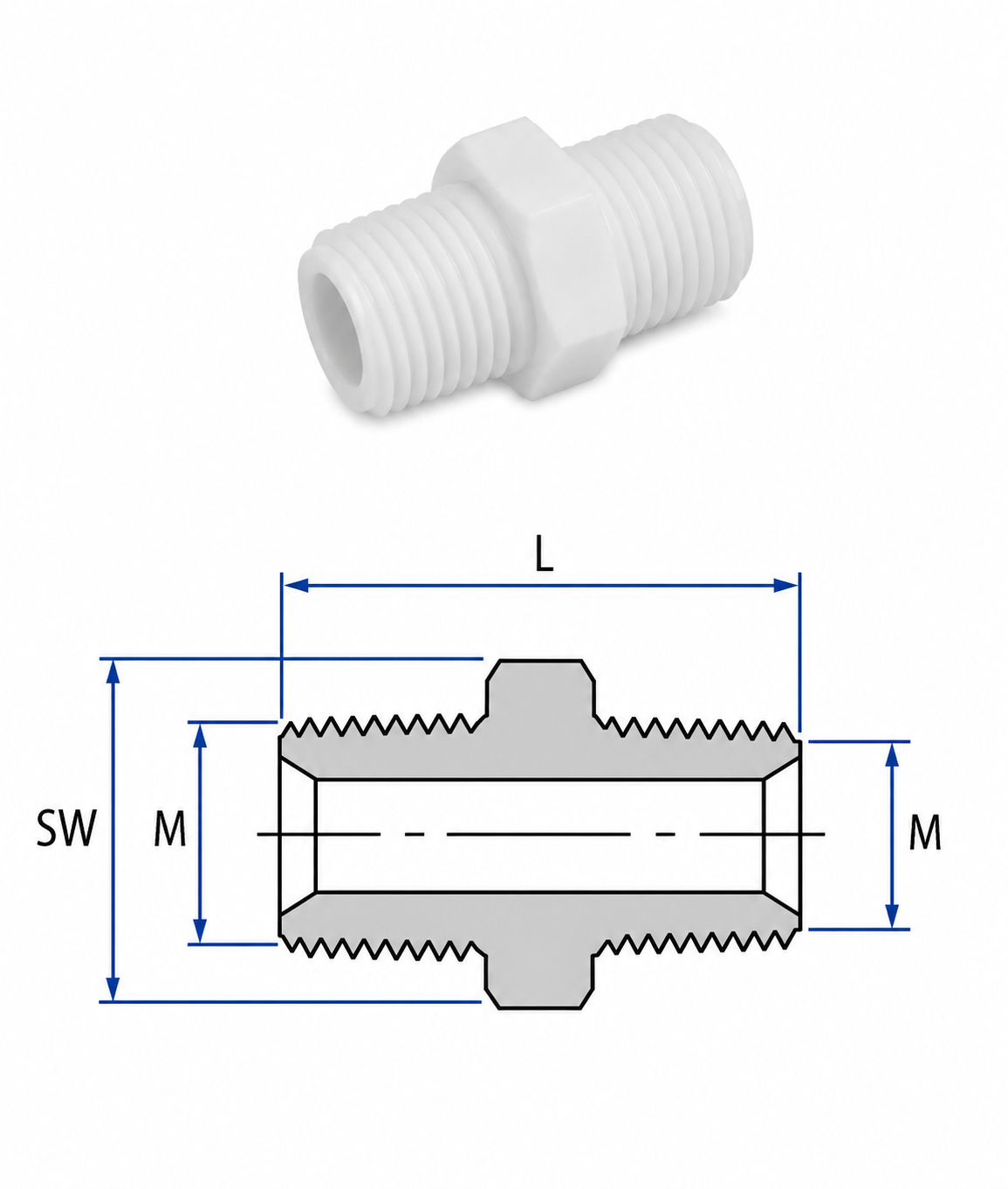

PVDF BSPT Pipe Hex Nipple
Brand:
PVDF is a special natural white shade of color plastic raw material. Fittings made of PVDF can function well, even when exposed to a wide range of temperatures and high corrosive chemicals.
Working pressure: Up to 14 BAR | (200 psi) at 20 ºC
Temperature: -20 ºC to -120 ºC (subject to application)
