PVDF is a special natural white shade of color plastic raw material. Fittings made of PVDF can function well, even when exposed to a wide range of temperatures and high corrosive chemicals.
Working pressure: Up to 14 BAR | (200 psi) at 20 ºC
Temperature: -20 ºC to -120 ºC (subject to application)

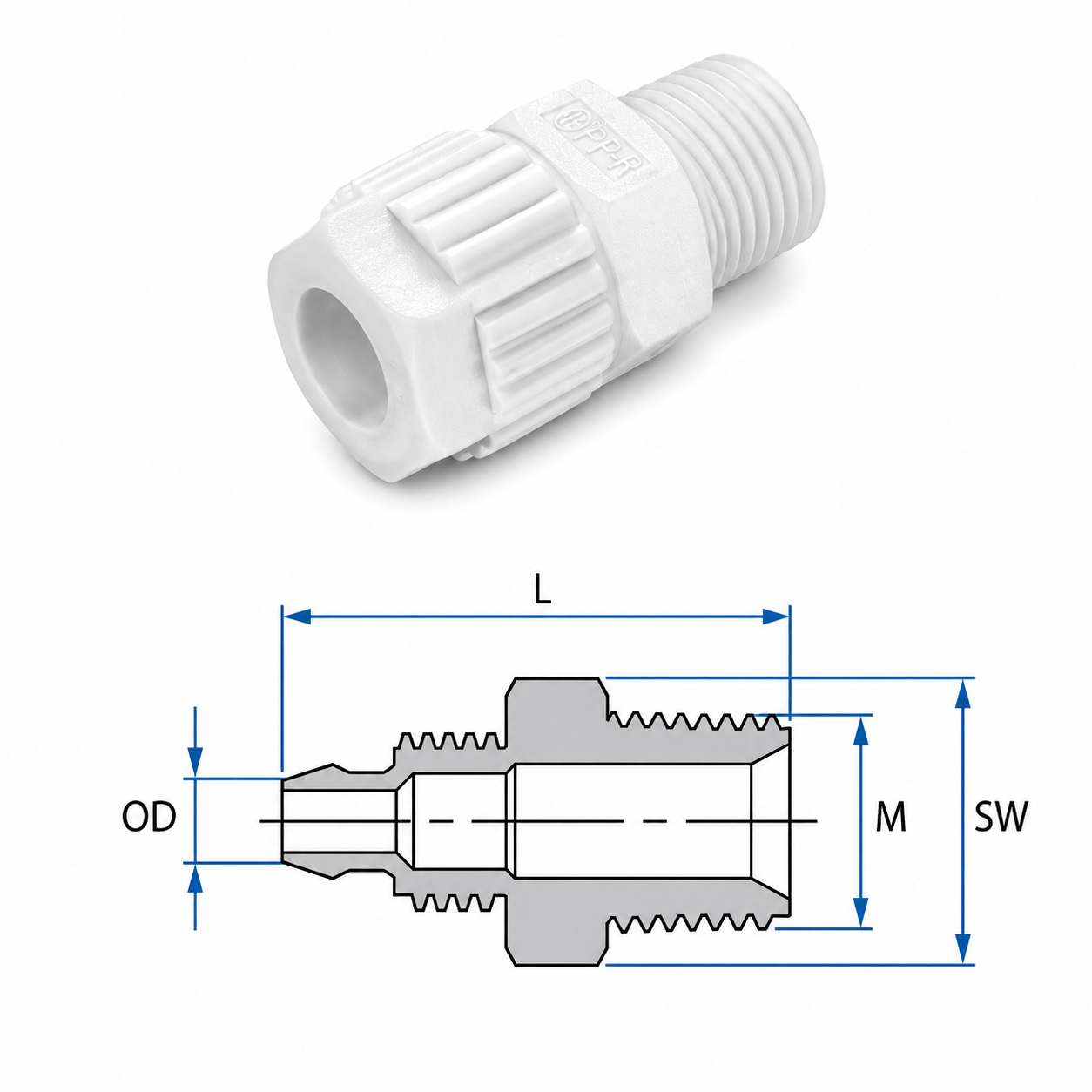

| Cat. No. | OD (inch) | Thread (NPT) | L (mm) | SW | Colour | |
|---|---|---|---|---|---|---|
| 22256804021 | 1/4" | 1/8" | 29.4 | 13 | White / Grey | BUY NOW |
| 22256804041 | 1/4" | 1/4" | 34 | 15 | White / Grey | BUY NOW |
| 22256804061 | 1/4" | 3/8" | 35.1 | 18 | White / Grey | BUY NOW |
| 22256804081 | 1/4" | 1/2" | 40.2 | 22 | White / Grey | BUY NOW |
| 22256804121 | 1/4" | 3/4" | 41 | 27 | White / Grey | BUY NOW |
| 22256805021 | 5/16" | 1/8" | 29.4 | 13 | White / Grey | BUY NOW |
| 22256805041 | 5/16" | 1/4" | 34 | 15 | White / Grey | BUY NOW |
| 22256805061 | 5/16" | 3/8" | 35.1 | 18 | White / Grey | BUY NOW |
| 22256805081 | 5/16" | 1/2" | 40.2 | 22 | White / Grey | BUY NOW |
| 22256805121 | 5/16" | 3/4" | 41 | 27 | White / Grey | BUY NOW |
| 22256806041 | 3/8" | 1/4" | 37.6 | 15 | White / Grey | BUY NOW |
| 22256806061 | 3/8" | 3/8" | 38.6 | 18 | White / Grey | BUY NOW |
| 22256806081 | 3/8" | 1/2" | 43.7 | 22 | White / Grey | BUY NOW |
| 22256806121 | 3/8" | 3/4" | 44.4 | 27 | White / Grey | BUY NOW |
| 22256808041 | 1/2" | 1/4" | 38.8 | 15 | White / Grey | BUY NOW |
| 22256808061 | 1/2" | 3/8" | 40 | 18 | White / Grey | BUY NOW |
| 22256808081 | 1/2" | 1/2" | 45 | 22 | White / Grey | BUY NOW |
| 22256808121 | 1/2" | 3/4" | 45.8 | 18 | White / Grey | BUY NOW |
