| Cat. No. | F (NPT) | L (mm) | SW | Colour | |
|---|---|---|---|---|---|
| 12060302021 | 1/8" | 19.7 | 14 | White | SEE PRODUCT |
| 12060304041 | 1/4" | 23.5 | 17 | White | SEE PRODUCT |
| 12060306061 | 3/8" | 24.6 | 21 | White | SEE PRODUCT |
| 12060308081 | 1/2" | 29.5 | 26 | White | SEE PRODUCT |

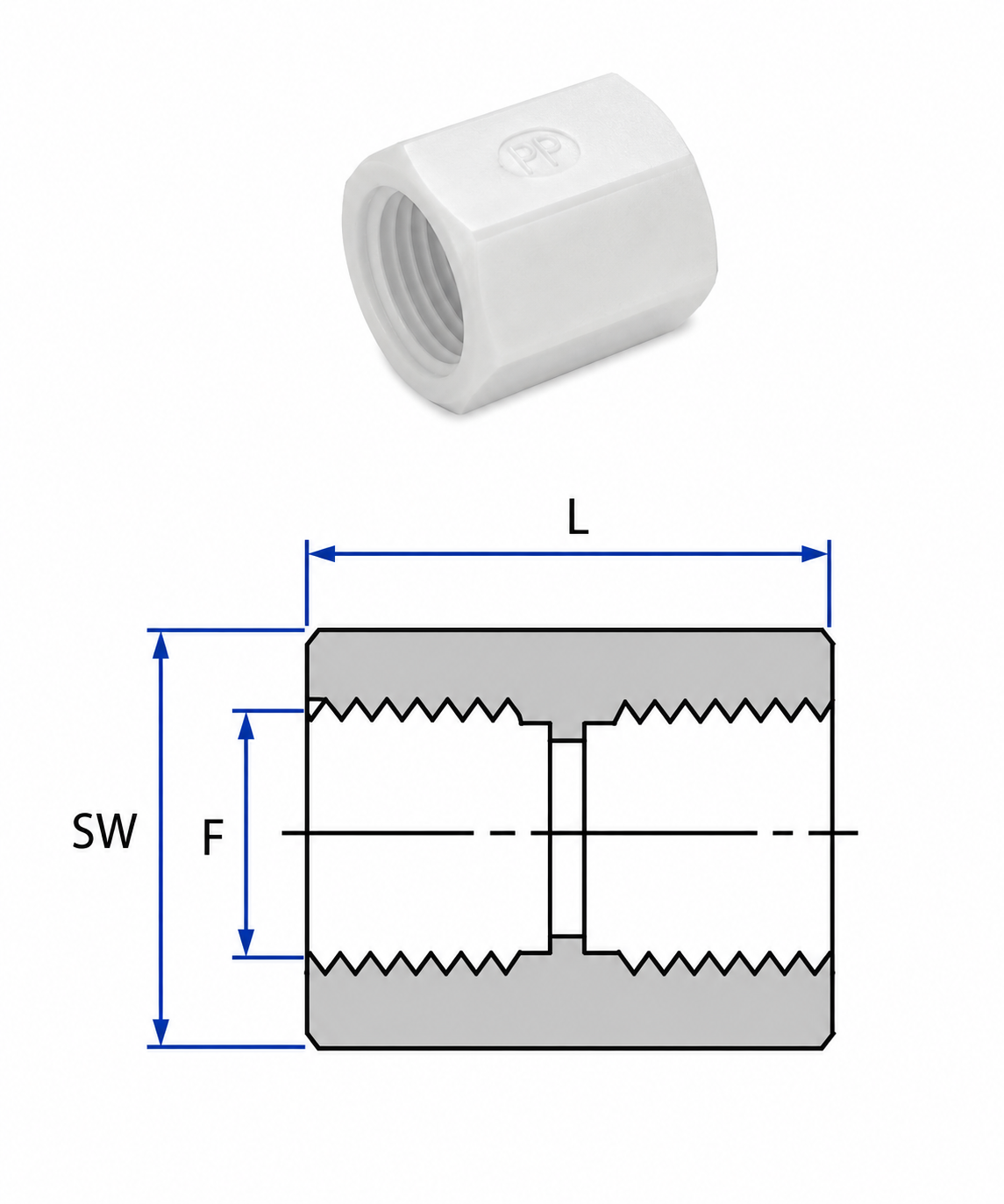

PVDF NPT Female Pipe Coupling
Brand:
PVDF is a special natural white shade of color plastic raw material. Fittings made of PVDF can function well, even when exposed to a wide range of temperatures and high corrosive chemicals.
Working pressure: Up to 14 BAR | (200 psi) at 20 ºC
Temperature: -20 ºC to -120 ºC (subject to application)
